Angiodroid The CO2 Injector
Angiodroid is the first unique automatic injector for peripheral angiography with CO2.
The injector let the user have a complete management of the gas dose and pressure of injection.
The system overcomes the issues related to air contamination, poor imaging and safety for the patients thanks to a patented technology which standardizes the use of CO2 in angiographic exams, reaching an excellent imaging technique in a shorter time.

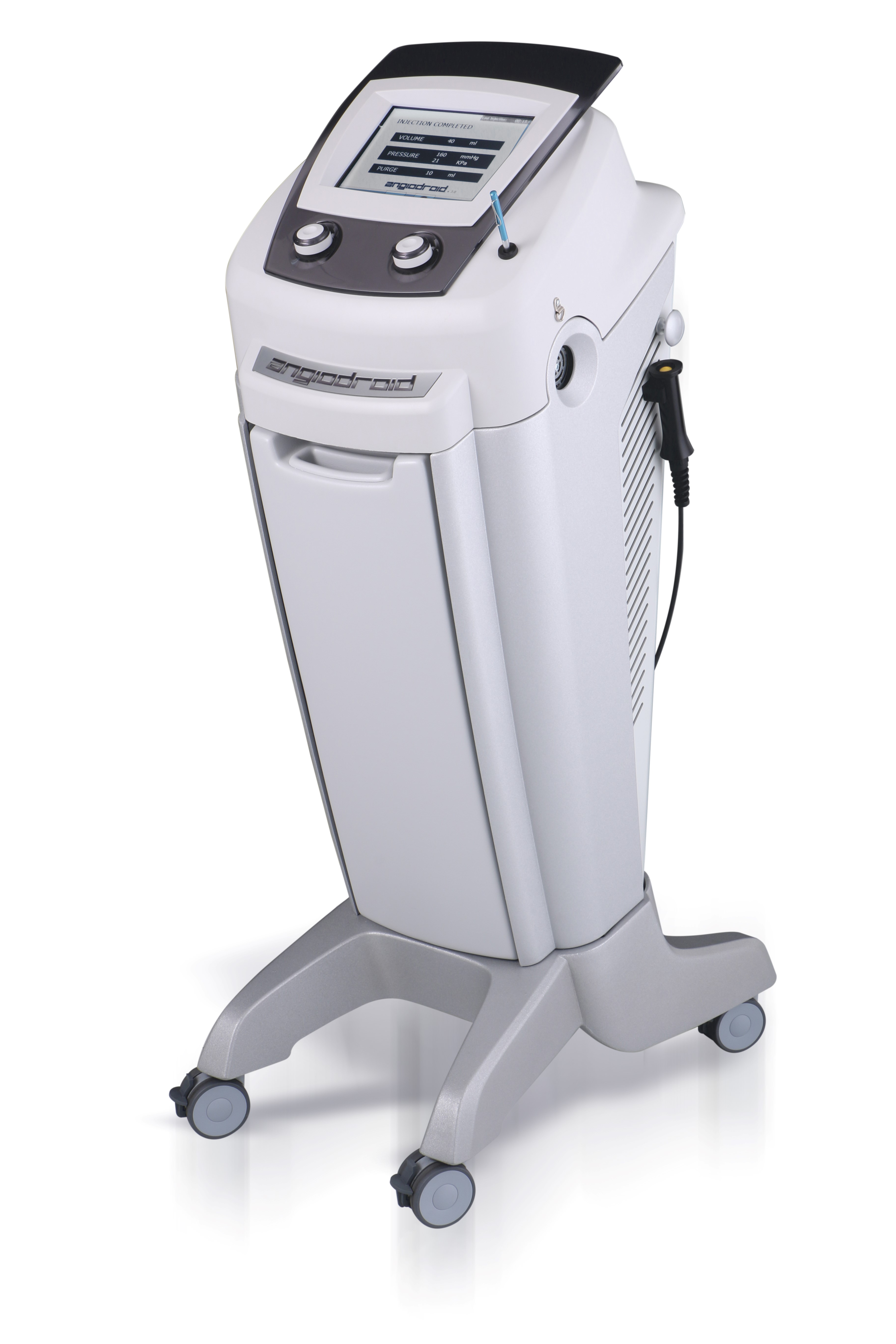

The unit is portable, with a CO2 tank inside that ensures more than 500 procedures and it’s ready to inject in 6 seconds. Users can choose the parameters and then the injection can be started with touch screen, synchronizing the injector with the X-ray system, or wireless, with a dedicated remote control.
More than 30 papers validated the use of the injector worldwide, and recent international guidelines suggested the use of automated CO2 angiography to save the renal function of patients.
Find more at angiodroid.com
Manufacturer Info
Why to use it

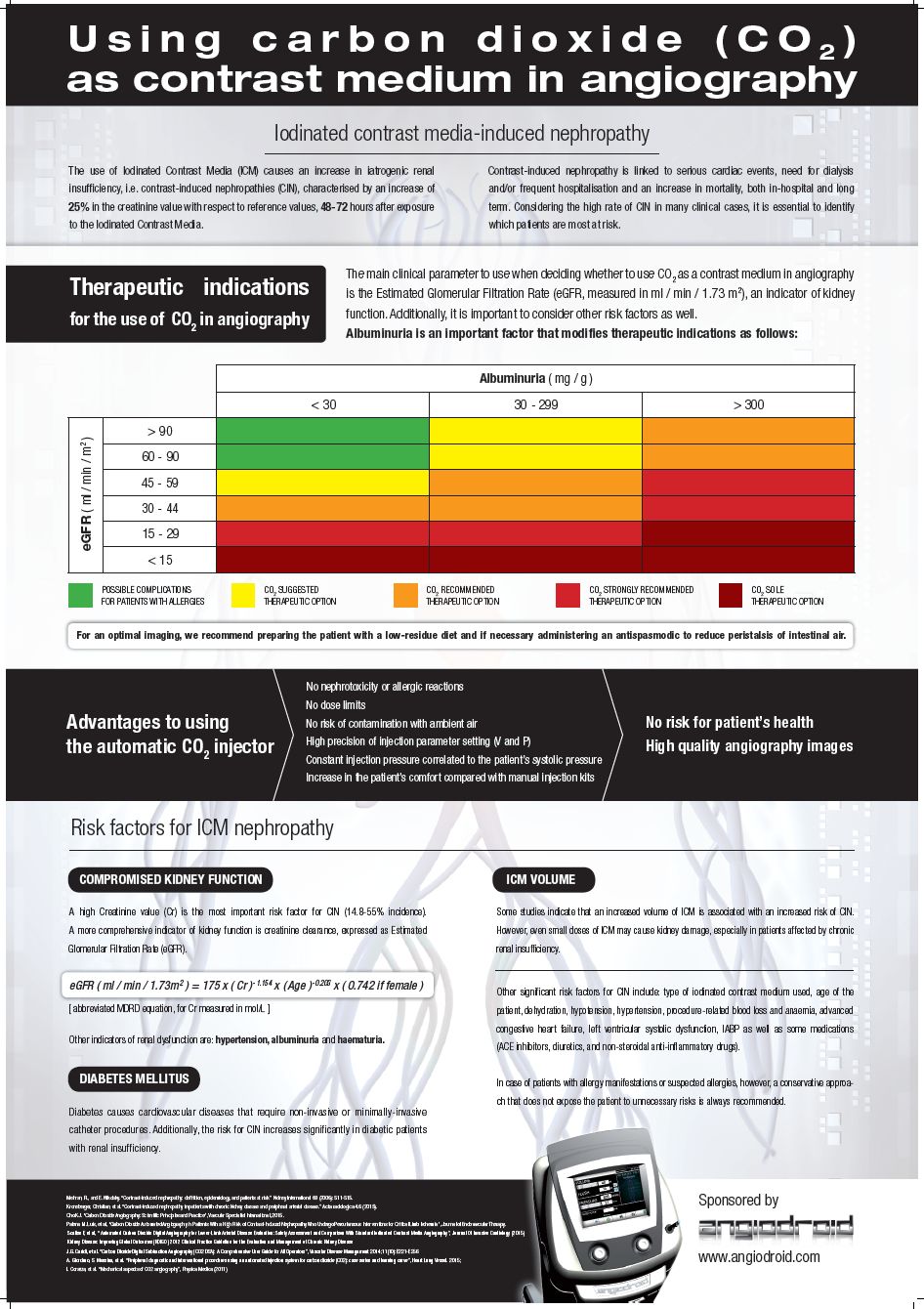

The use of CO2 as a Contrast Agent can bring considerable advantages such as:
– no allergic reaction or no renal complications (avoid CIN risk);
– 20 times more soluble than O2 in the blood;
– 400 times less viscous than iodine (better endoleaks detection);
– fast and natural removal by normal breathing through lungs;
– cheap contrast
Angiodroid Srl has developed the first and unique automatic injector for CO2 management, that allows the physician to have complete control over the injection of the gas during the procedure. The injector has already obtained several certifications for commercialization in over 50 countries worldwide, and dozens of papers have been published on its safety and efficacy since 2014.
Instructions for use
Characteristics
MAIN TECHNICAL FEATURES |
---|
Quick and fast digital dosage and pressure of injection set |
Fast Automatic Reload (6 seconds) for repeatable injection |
High accuracy in dosing and pressure setting |
Dual microcontroller to ensure high performance and high safety |
Remote controller and X-ray synchronization to start the injection |

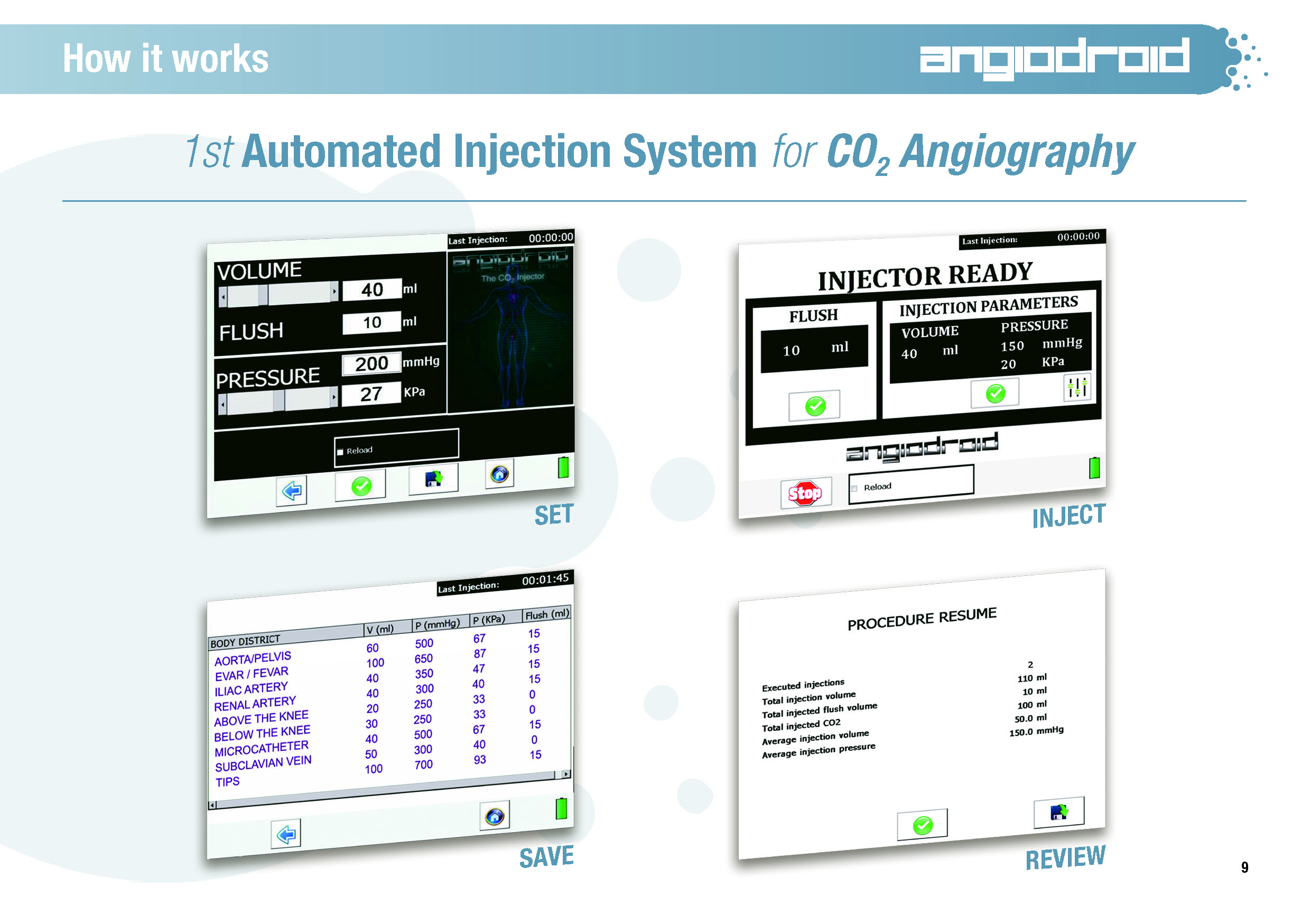

Save each injection settings for different districts Touch screen console |
Benefits |
---|
Defines with precision the amount of gas to be injected into the vessel |
Defines Volumes and Pressures of injection (automation, security and repeatability of the procedure) |
Guarantees a Constant Injection pressure of the gas during the procedure allowing the repeatability of the procedure and obtaining an excellent quality of imaging |
Ensures complete removal of the air contained in the catheter. None Air Contamination Risk caused by manual operation |
