BeGraft peripheral PLUS

Balloon-expandable stent graft consisting of a unique double stent CoCr construction and two layers of ePTFE, indicated for the use in iliac and renal artery lesions, providing very high radial force combined with flexibility and thus suitable for the most complex procedures.

Manufacturer Info

Bentley
Lotzenäcker 3
72379 Hechingen

Bentley is an international medical technology company with headquarters in the South of Germany. At Bentley we are passionate about the development, manufacture and marketing of innovative products for the minimally invasive treatment of vascular afflictions. Following our belief that high-end medical technology is the key to better patient care and health, we focus on the development of unique products and strive to find answers to questions posed by the healthcare industry.

Products presented on this platform may not be available in all countries.

Please refer to our website www.bentley.global or contact us via info@bentley.global for more information.

Why to use it

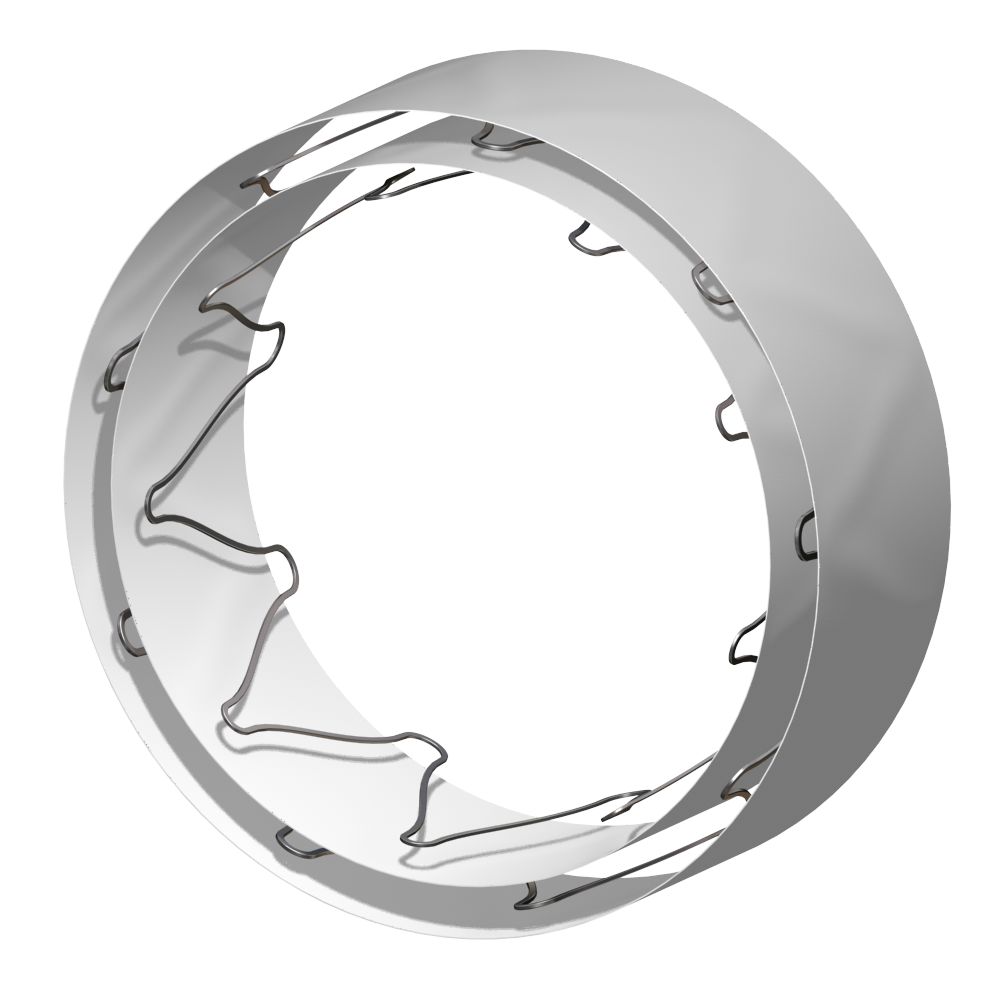

The balloon-expandable BeGraft peripheral plus stent graft consists of a unique double stent construction made of Cobalt-Chromium (CoCr) and two layers of ePTFE, one on the outer side and one between the two stents. The indication for use covers a wide range of iliac and renal artery lesions. The very high radial force combined with flexibility are outstanding features of this stent graft that is 7F compatible up to the size of 8×57 mm, which makes the BeGraft peripheral plus suitable for the most complex procedures.

Characteristics

Material:        CoCr, double stent scaffold, open-cell design

Cover:            two layers of ePTFE of ~200µm thickness and patented fixation

Catheter:       120cm OTW, semi-compliant balloon
