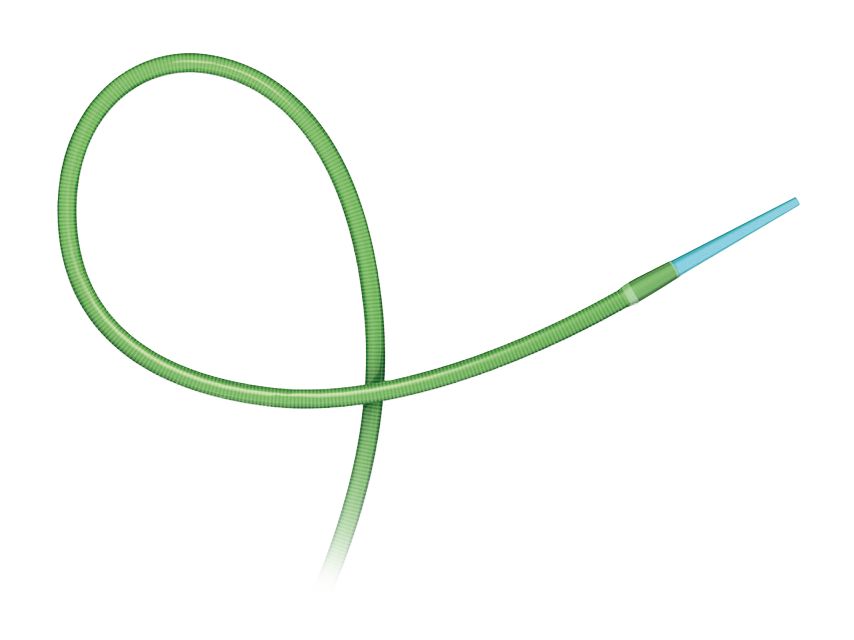

Destination® – Guiding Sheath

Destination® Guiding Sheath is designed to perform as a guiding catheter and an introducer sheath.
Destination® Guiding Sheath is designed to be used for the introduction of interventional and diagnostic devices into the human vasculature, including but not limited to lower extremity, renal arteries, and carotid arteries.

Manufacturer Info


Why to use it

* Coil reinforced tubing and PTFE inner layer that minimizes friction
* Stainless steel coil designed with a view to streamlining reliability
* Triple radiopacity to enchance visualization and allow precise positioning
* Hydrophilic coating at the distal end for traceability
* PTFE inner layer which provides smooth device passage
* 5 different tip configurations


General specifications

Maximum Guidewire Size0.038 in/ 0.97 mm
Radiopaque MarkerGold Coil Marker At 5 mm From The Distal Tip Of The Sheath
Reinforcement Inside The SheathStainless Steel Coil
Sheath Inner LayerPTFE Polytetrafluoroethylene

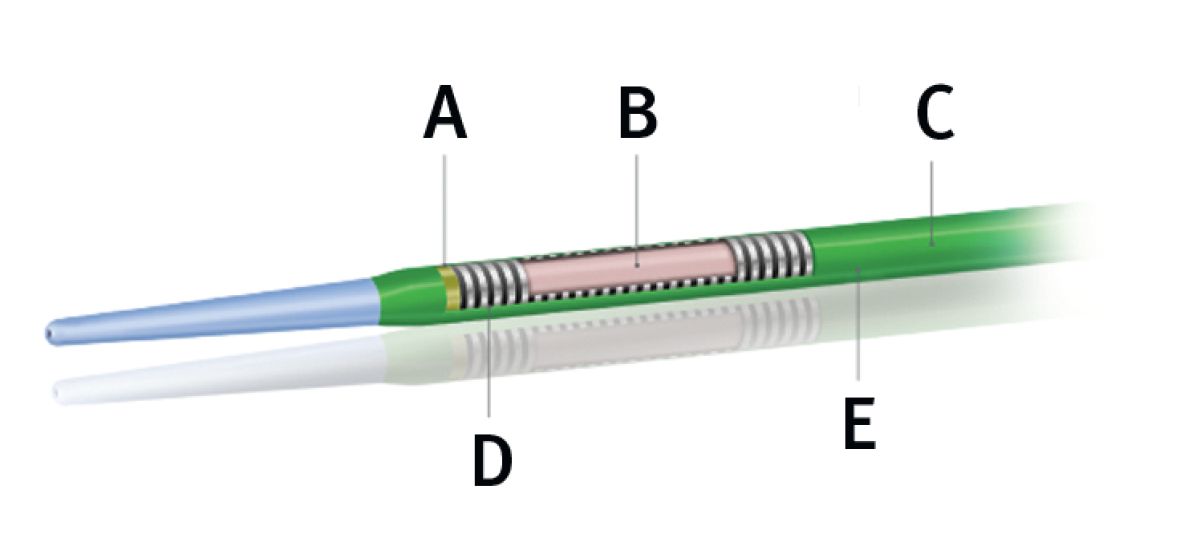

Technical drawing legend

AGold Coil Marker
BPTFE Inner Layer
CNylon Outer Layer
DStainless Steel Coil
EHydrophilic Coating

For additional information regarding specifications, please visit the Terumo Website.
