Passeo®-35 Xeo PTA Balloon Catheter

The Passeo^®-35 Xeo low-profile PTA balloon catheter has excellent deliverability in a wide range of sizes. Passeo-35 Xeo is indicated to dilate stenosis in the iliac*, femoral, popliteal and infrapopliteal arteries and for the treatment of obstructive lesions of native or synthetic arteriovenous dialysis fistulae. Passeo-35 Xeo is also recommended for post-dilation of balloon expandable and self-expanding stents in the peripheral vasculature.**

^{*Note for Australia: Passeo-35 Xeo not approved by Therapeutic Goods Administration for use in the common iliac arteries.}

^{**Indication as per IFU.}^{***not available for sale in the US.}

Manufacturer Info

Biotronik BIOTRONIK AG

Ackerstrasse 6

8180 Bülach - Switzerland

Why to use it

• Improved Crossability: up to 0.16 mm lower tip entry profile compared to leading competitors.¹ The low tip entry profile and smooth tapered tip of Passeo-35 Xeo facilitates crossing, with an up to 0.22 mm lower crossing profile compared to leading competitors.¹

• Excellent Deliverability: The Passeo-35 Xeo catheter offers excellent trackability and pushability compared to competitive 0.035″ PTA balloon catheters.²

• Low Profile, Wide Range of Sizes: Low profile design with a full 5F compatibility up to 7.0 mm balloon diameter and 250 mm balloon length, 6F up to 10.0 mm and 7F up to 12.0 mm diameter.

• Optimal Deflation Times: Due to size-specific shaft design.

• Radial Approach Possible: Usable catheter length up to 170 cm.

^{1. BIOTRONIK data on file. Compared to leading competitors 6.0 mm diameter balloon size. IIB(P) 39/2017; 2. BIOTRONIK data on file. Compared to leading competitors 6.0×200 mm balloon size.}

^{Passeo and Xeo are trademarks or registered trademarks of the BIOTRONIK Group of Companies.}

Characteristics

Technical Data
Catheter Type	OTW
Recommended Guidewire	0.035"
Tip	Low entry profile, colored
Balloon material	Semi-Crystalline Polymer, controlled compliance
Balloon Coating	Hydrophobic patchwork coating
Balloon Markers	2 staged markers

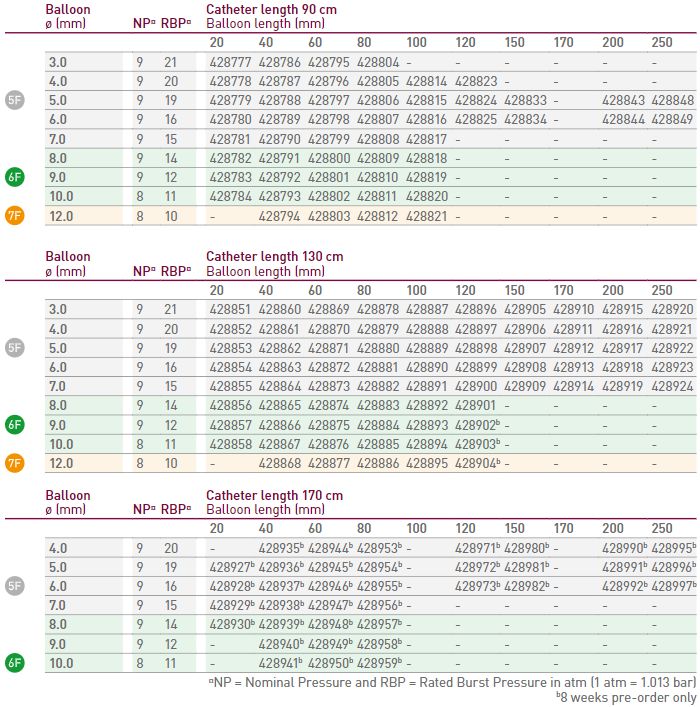

Sizes	ø 3.0-12.0 mm; L: 20-250 mm
Shaft	5.1-5.4F, dual-lumen, hydrophobic coating
Usable length	90, 130 and 170 cm
Guidewire Lumen	Hydrophobic coating
