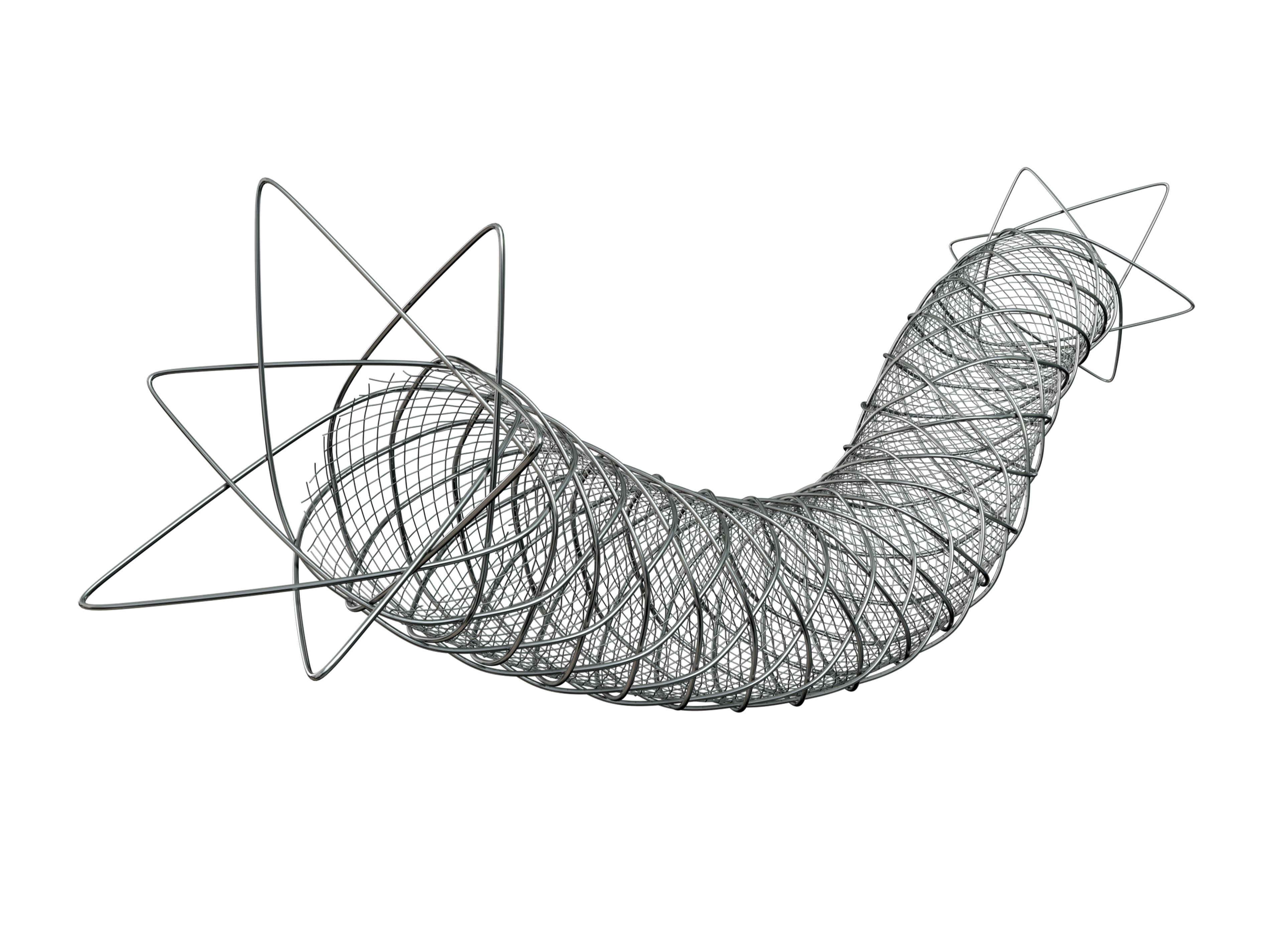

Roadsaver® – Carotid Artery Stent
The Roadsaver® Carotid Stent System is indicated for use in patients with carotid arterial atherosclerotic disease.
Why to use it
A novel design – Nickel titanium (Nitinol) double layer micromesh design
* Designed to support wall apposition
* Superior in-vessel flexibility
* Allows for side branch patency
* Conforms to tortuous anatomies
* In-Vivo tapering of braided Nitinol design conforms to tapered ICA-CCA segments Sustained embolic protection
* Designed to support the prevention of plaque protrusion and emboli release after stent implantation
* Double-layer micromesh designed to assist in containing plaque to the vessel wall
Characteristics
General specifications
| Construction | Double layer, braided micromesh |
| Delivery System Construction | Rapid Exchanger |
| Guidewire Compatibility | 0.014 in/ 0.36 mm |
| Implanted Dimensions - 1mm < Unconstrained Ø | 1 mm |
| Implanted Dimensions - 2mm < Unconstrained Ø | 2 mm |
| Material | Nitinol with Tantalum |
| Minimum Guide Catheter | > 0.074 - 1.9 mm/ 5 Fr |
| Minimum Guide Sheath | > 0.074 -1.9 mm/ 5 Fr |
| Outer Diameter | 5.2 Fr |
| RX Segment Length | 25 cm |
| Usable Catheter Length | 143 cm |
| Valve | Tuohy - Burst |

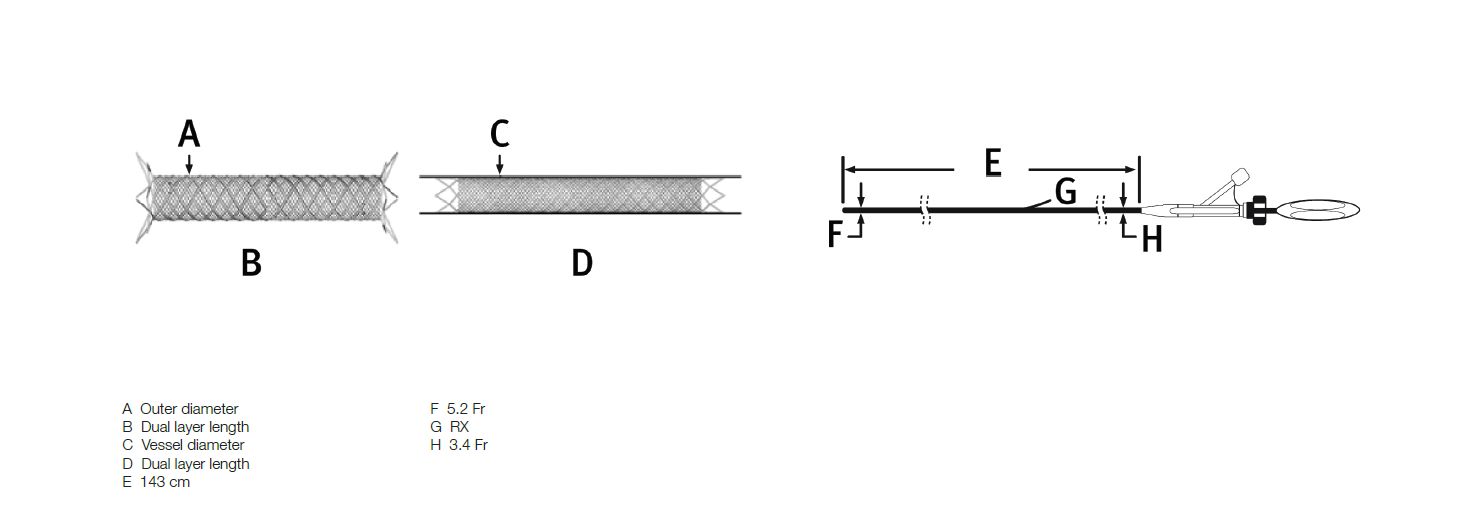

Technical drawing legend
| A | Outer diameter |
| B | Dual layer length |
| C | Vessel diameter |
| D | Dual layer length |
| E | 143 cm |
| F | 5.2 Fr |
| G | RX |
| H | 3.4 Fr |
For additional information regarding specification, please visit the Terumo Website.
